TIMER
|
|
multi function timer
|
|
11,25mm
|
SMRS
1 change over contact
time range:
0,05s ....30 min
|
SMR
1 change over contact
time range:
0,05s ... 10h
|
SAE
2 change over contact
time range:
0,05s ... 100h
|
|
22,5mm
|
BMR
contact controlled
2 change over contact
time range:
0,01s ... 10h
|
BMRV
voldays controlled
2 change over contact
time range:
0,01s ... 10h
|
|
|
22,5mm
|
BMRF
contact controlled and galvanic isolated
2 change over contact
time range
0,01s ... 10h
|
BMRFV
voldays controlled and galvanic isolated
2 change over contact
time range:
0,01s .... 10h
|
|
|
17,5mm
|
ZMRS
1 or 2 change over contact
time range:
0,05s ... 30 min
|
ZMR
1 or 2 change over contact
time range:
0,05s ... 10h
|
ZMR für 48V
1 or 2 change over contact
time range:
0,05s ... 10h
|
|
17,5mm
|
ZMRFS
galvanic isolation
1 or 2 change over contact
adjustable times
0,05s ... 30 min
|
ZMRF
galvanic isolation
1 or 2 change over contact
adjustable times
0,05s ... 10h
|
SOZMR
function: delay on operate
and
delay on release
1 or 2 change over contact
adjustable times
0,05s ... 10min
|
|
single function timer
|
|
flasher
|
|
STG
1 change over contact
time range:
0,15s ... 60min
|
|
ZTG
2 change over contact
adjustable times
0,05s ... 1h
|
|
ZTG
2 change over contact
fix times by request of customer
|
|
flasher
|
|
BTG
2 change over contact
time range:
0,05s ... 1h
|
|
BTGF
with galvanic isolation
2 change over contact
time range:
0,05s ... 1h
|
|
|
delay on operate
|
|
SA
1 change over contact
time range:
0,05s 100h
|
|
ZA
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
delay on release
*without
auxiliary voldays
|
|
SAB
1 change over contact
time range:
0,05s ... 100h
|
|
ZAB
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
BAB*
2 change over contact
time range:
0,1s ... 30min
|
|
pulse on operate
|
|
SEW
1 change over contact
time range:
0,05s ... 100h
|
|
ZEW
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
pulse on release
|
|
SAW
1 change over contact
time range:
0,05s ... 100h
|
|
ZAW
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
watchdog-timer
|
|
SWD
1 change over contact
time range:
0,05s ... 100h
|
|
ZWD
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
pulis former
voltage controlled about B1/B2-
|
|
SIF
1 change over contact
time range:
0,05s ... 100h
|
|
ZIF
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
|
contact protection
delay on operate and delay on release
|
|
SKS
1 change over contact
time range:
0,05s ... 100h
|
|
ZKS
times for delay on operate and delay on release are separately adjustable
1 or 2 change over contact
time range:
0,05...10min
|
|
|
|
star-delta-relay
motor start relay
|
|
SSD
2 change over contact
time range:
0,5s ... 300s
|
|
ZSD
2 change over contact
time range:
0,05s ... 600s
|
|
|
|
flasher relay
|
|
SBR
1 change over contact
time range:
0,05s ... 100h
|
|
ZBR
1 or 2 change over contact
time range:
10ms ... 12 days
|
|
|
|
special function relays
|
|
|
ZPW
timer for pump changes after switching off the control voltage at B1. The device switches off the
output after 100 ms..
|
|
ZANIP
delay on operate
pulsed
|
|
ZANIPV
delay on operate followed by a pulse
voltage controlled at B1 (20-250V UC)
|
|
ZAx2
cascade connection of 2 intern relays with different times
2 delay on operate devices in one housing
|
|
|
|
|
ZIM
pulse measuring relay for up to 16 pulses
voltage controlled at B1 (20 - 250V UC)
|
|
SOR49
adjustable pause followed of an adjustable pulse which are activated by negative edge at B1
2nd changer as immediate contact for the entire period
|
|
SOR48
adjustable pulse followed of an adjustable pause which are controlled by an external button
|
|
coupling relays
|
|
coupling relays
for galvanic isolation and/or for amplification of signals
|
|
SKR
1 or 2 change over contact
|
|
ZKR
1, 2 change over contact or .
2 change over contact & 1 closer contact
|
|
BKRS
with force-guided contacts for safe isolation
2 normally open
contacts,
2 normally closed contacts or
1 normally open contact,
3 normally closed contacts
|
|
measuring relays
|
|
voltages measuring relays
for
under voltage
over voltage
window voltage
with or without fail safe protection
|
|
SUR
over voltages
measuring relays
with or without fail safe protection
|
|
SUR
under voltages
measuring relays
with or without fail safe protection
|
|
SUR
window voltages
measuring relays
with or without fail safe protection
|
|
|
ZUR
over voltages
measuring relays
with or without fail safe protection
|
|
ZUR
under voltages
measuring relays
with or without fail safe protection
|
|
ZUR
window voltages
measuring relays
with or without fail safe protection
|
|
battery guard
for 12V, 24V, 48V or 60V
|
|
ZBW
Low voltage protection and over charging protection for lead-acid batteries.
|
|
ZBL
Low voltage protection and over charging protection for LiFePO4 batteries
|
An using example you will find here
|
|
current measuring
relays-
for
under current
over current
window current
with or without
fail safe protection
|
|
SIR
over current
measuring relays
with or without fail safe protection
|
|
SIR
under current
measuring relays
with or without fail safe protection
|
|
SIR
window current
measuring relays
with or without fail safe protection
|
|
|
ZIR
over current
measuring relays
with or without fail safe protection
|
|
ZIR
under current
measuring relays
with or without fail safe protection
|
|
ZIR
window current
measuring relays
with or without fail safe protection
|
|
three-phase current
measuring relays
|
|

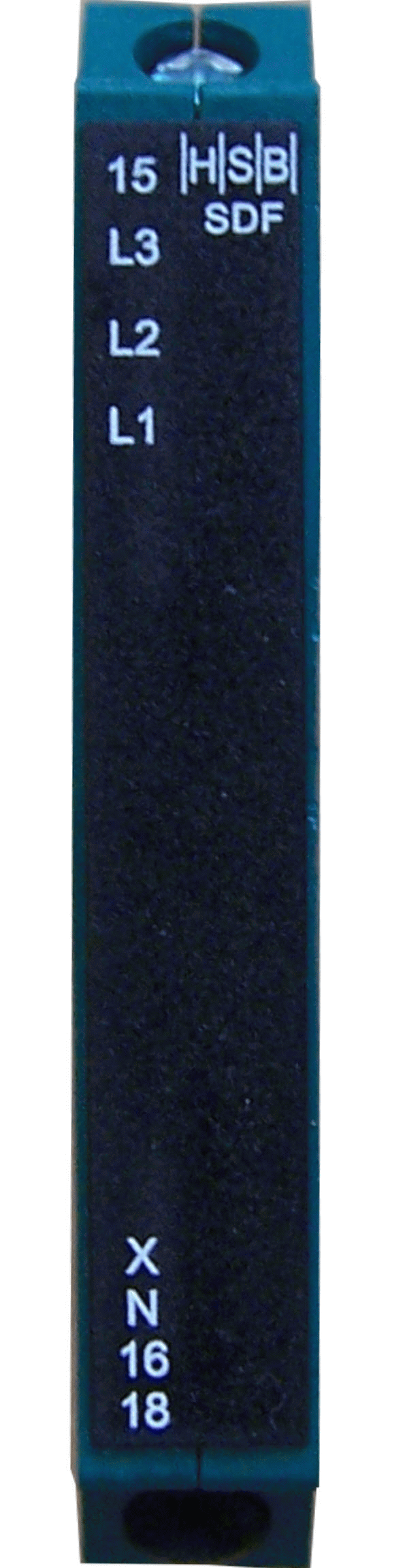

SDP / SDP-N
three phase guard
phase sequence monitoring relay for controlling of clockwise rotating field with or without N connector
|
|
SDF/SDFP
three phase guard with fixed voltage values with or without
phase sequence monitoring / phase failure
|
|
SDV/SDVP
three phase guard with adjustable voltage values with or without phase sequence monitoring
/ phase failure
|
|
|
SMP
phase sequence monitoring relay for controlling of clockwise rotating field
replaced by SDP-N
|
|
SMU
voltage guard with or without phase sequence
monitoring
replaced
by SDV
|
|
|
|
|
ZDP / ZDP-N
three phase guard
phase
sequence monitoring relay for controlling of clockwise rotating field
|
|
ZDV
phase guard for
1- or 3 phases
- adjustable values for
under voltage and over
voltage
- adjustable time delay
|
|
ZDA
asymmetry measuring relays
asymmetry guard for
10-35° phase shift between L1,L2,L3
|
|
liquid level relays
for monitoring fill levels of
different liquids
- adjustable delay time
- adjustable function fill in /
fill out
|
|
SNR uni
universall measuring range of 5-300kOhm
|
|
SNR fest
measuring range by choosing
2,5...25kOhm
5...50kOhm
10...100kOhm
50...500kOhm
|
|
ZNR uni
universal measuring range of 5-300kOhm
supply voltage:
24V AC/DC or 85-265V AC
|
|
thermistors protection relays
for monitoring engine temperatures
using commercially available PTC resistors or thermistors
|
|
STH
housing 11,25mm
|
|
ZTH
housing 17,5mm
|
|
|
|
temperature measuring relays
for monitoring limit temperatures using
platinum sensors Pt100 or Pt1000 in two-wire technology
|
|
STE
housing 11,25mm
|
|
ZTE
housing 17,5mm
|
|
|
|
transducer and isolation converters
|
|
transducer
for conversion of standard signals
|
|
STR
housing 11,25mm
1 output
supply voltage: 24V
|
|
BTR
housing 22,5mm
1 output
supply voltage: 85-265V
|
|
|
|
|
BTRx2
housing 22,5 / 45mm
2 outputs
supply voltage:
24V or 85-265V
|
|
BTRx3
housing 22,5 / 45mm
3 outputs
supply voltage:
24V or 85-265V
|
|
|
|
current and voltage transducer
|
|
BIM
curent transducer for example 100mA, 1A, 5A
current transducer by custumer wishes
(see data sheet)
|
|
BUM
voltages transducer for example 100mV, 24V 500V
voltage transducer by custumer wishes
(see data sheet)
|
|
BUMs
voltage transducer thie current and
voltage output by customer wishes
(see data sheet)
|
|
conductivity
transducer
|
|
SLM
BLM
value ranges by customer wishes
|
|
|
|
|
|
frequency
transducer
|
|
SFM
housing 11,25mm
input by customer
wishes
for input voltage of 24V UC
|
|
BFM
housing 22,5mm
input by
customer wishes
for input voltage of 85-265V UC
|
|
|
|
display devices and accesories
|
|
|
HSB4824D
digital display device for build in
for display of analogue measuring from
0...20mA DC/. 4...20mA DC and from 0...10V DC / 2...10V DC
input range till 250V DC or 24A DC
|
|
|
accesories for HSB4824D
for programming the digital display device HSB4824D consisting of:
-
programming interface with plug for external calibration signal
- SUB-D / connection cable (PC interface)
- power supply adapter
|
|
|
Software for HSB4824D
for programming of digital display devices
Version V6.1 up to Win7 (32 und 64 bit)
Version V6.0 for Win XP
Version V5.0 for Win XP, Win 98 and Win NT
Version V4.0 for Win 98 and Win 95
|
